Galvanized steel flanges are a versatile and durable type of flange that can be used in a wide variety of applications. Galvanized steel flanges are commonly used in plumbing, HVAC, fire protection, industrial piping, and marine environments.

What are Galvanized Steel Flanges?

Galvanized steel flanges are steel flanges that have been coated with a thin layer of zinc. They are made by dipping carbon steel flanges into a molten zinc bath. It creates a thin coating of zinc on the surface of the flange, which protects the flange from rust and corrosion, even in harsh environments. The thickness of the zinc coating typically ranges from 0.002 to 0.005 inches.

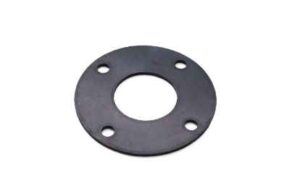

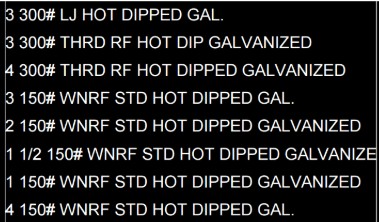

Galvanized Steel Flanges

Image Source: Texas Flange

Benefits of Galvanized Steel Flanges

  1. Corrosion Resistance: Galvanized flanges are highly resistant to rust and corrosion.
  2. Longevity: They have a longer lifespan compared to untreated steel components.
  3. Strength and Durability: Galvanized flanges are strong and can withstand high pressures and stress.
  4. Cost-Effective: They offer cost savings through reduced maintenance and replacement expenses.
  5. Low Maintenance: Galvanized flanges require minimal upkeep.
  6. Versatility: They are suitable for various applications and come in different types and sizes.
  7. Aesthetic Appeal: Galvanized flanges often have an attractive, shiny finish.
  8. Wide Availability: They are readily available in the market, ensuring accessibility and competitive pricing.

Applications of Galvanized Steel Flanges

  • Plumbing: Galvanized steel flanges are commonly used in plumbing systems to connect pipes and fittings. They are also used to connect pipes to valves and other plumbing fixtures.
  • HVAC: Galvanized steel flanges are commonly used in HVAC systems to connect ducts and fittings. They are also used to connect ducts to air handlers, fans, and other HVAC equipment.
  • Fire protection: Galvanized steel flanges are commonly used in fire protection systems to connect pipes and fittings. They are also used to connect pipes to sprinkler heads, valves, and other fire protection equipment.
  • Industrial piping: Galvanized steel flanges are commonly used in industrial piping systems to transport a variety of materials, including water, steam, chemicals, and gases.
  • Marine environments: Galvanized steel flanges are commonly used in marine environments because they are resistant to corrosion. They are used in a variety of applications, including shipbuilding, oil and gas production, and offshore drilling.

Materials used in Galvanized Steel Flanges

Galvanized steel flanges are primarily made of two main materials:

  • Steel: The core material of galvanized steel flanges is typically carbon steel or stainless steel. Carbon steel is commonly used for most applications due to its strength and affordability. Stainless steel, on the other hand, is used when added corrosion resistance is needed, often in more demanding environments such as chemical processing or offshore applications.
  • Zinc coating: The key feature of galvanized steel flanges is the zinc coating. This coating is applied to the steel through a process called galvanization. Zinc is chosen for its sacrificial anode properties, which means it corrodes in place of the underlying steel, protecting it from rust and corrosion. The thickness of the zinc coating can vary depending on the specific application and requirements.

How are galvanized steel flanges manufactured?

Galvanized steel flanges are manufactured using a process called galvanization. This process involves dipping carbon steel flanges into a molten zinc bath. The zinc coating that is created on the surface of the flange protects it from rust and corrosion.

The manufacturing process of galvanized steel flanges can be broken down into the following steps:

  1. Cutting the flange plate to size: The first step in the manufacturing process is to cut the flange plate to size. It is typically done using a waterjet cutter or a laser cutter.
  2. Drilling and tapping the bolt holes: The next step is to drill and tap the bolt holes in the flange plate. It is done using a CNC machining center.
  3. Machining the flange face: The flange face is then machined to ensure that it is smooth and flat. It is done using a CNC machining center.
  4. Galvanizing the flange: The flange is then galvanized by dipping it into a molten zinc bath. It creates a thin layer of zinc on the surface of the flange, which protects it from rust and corrosion.
  5. Inspection and testing: The flange is then inspected and tested to ensure that it meets all of the required specifications.

Specifications for Galvanized Steel Flanges

The specifications for galvanized steel flanges are defined by a number of different standards organizations, including ASME (American Society of Mechanical Engineers), ANSI (American National Standards Institute), and ISO (International Organization for Standardization).

The most common standard for galvanized steel flanges is ASME B16.5. This standard covers the dimensions, materials, and tolerances for flanges used in pipe systems.

Other important standards for galvanized steel flanges include:

  • ASME B16.47: This standard covers the dimensions, materials, and tolerances for flanges used in flanged fittings.
  • ANSI B16.5: This standard covers the dimensions, materials, and tolerances for flanges used in low-pressure pipe systems.
  • ISO 7005: This standard covers the dimensions, materials, and tolerances for flanges used in general-purpose applications.

Select the right Galvanized Steel Flange

To select the right galvanized steel flanges for your needs, follow these key steps:

  • Identify your specific application and its requirements.
  • Assess the environmental conditions where the flanges will be used.
  • Specify pressure and temperature ratings based on your system’s demands.
  • Choose the appropriate flange type (e.g., slip-on, weld neck) for your connections.
  • Consider the material (carbon steel or stainless steel) and ensure the galvanized coating meets thickness standards.
  • Confirm the size, dimensions, bolt-hole patterns, and flange face compatibility.
  • Ensure compliance with industry standards and codes.
  • Estimate the quantity needed and establish a budget.
  • Account for future maintenance requirements.
  • Seek guidance from experts or suppliers if uncertain.

Installation:

  1. Prepare the work area and inspect the flanges for defects.
  2. Ensure the pipes are clean and the ends are smooth.
  3. Align the flanges with the pipes and use gaskets if necessary.
  4. Bolt the flanges, gradually tightening in a crisscross pattern.
  5. Tighten bolts to manufacturer’s specifications.
  6. Check alignment and perform a pressure test before operation.

Maintenance:

  1. Regularly inspect flanges for damage, rust, and coating conditions.
  2. Clean flanges as needed with a mild detergent and a soft brush or cloth.
  3. Consider re-galvanization if the coating is significantly compromised.
  4. Promptly replace damaged components.
  5. Maintain bolt tightness and avoid over-tightening.
  6. Address environmental changes that may require more frequent maintenance to prevent issues.

FAQs

Q1. How does the galvanization process work?

Galvanization involves immersing steel flanges in a bath of molten zinc. The high-temperature zinc coating forms a protective layer that shields the steel from rust and corrosion.

Q2. What is the lifespan of galvanized steel flanges?

The lifespan of galvanized steel flanges can vary depending on the environment and application. In normal conditions, they can last for decades, thanks to their excellent corrosion resistance.

Q3. Can galvanized flanges be used for potable water applications?

Yes, galvanized steel flanges are suitable for potable water applications.

Q4. Are galvanized flanges suitable for outdoor applications?

Yes, galvanized flanges are well-suited for outdoor applications.

Q5. Can galvanized steel flanges be painted or coated further?

While galvanized flanges have a protective zinc coating, they can be painted or coated with compatible materials if additional protection or a specific finish is required.

Q6. Are there alternatives to galvanized steel flanges for corrosion resistance?

Yes, alternatives include stainless steel flanges, which are inherently corrosion-resistant, and epoxy-coated or plastic flanges.

Q7. How should I store and handle galvanized steel flanges to maintain their quality?

Store flanges in a dry, covered area to prevent moisture buildup. When handling, avoid dragging them on abrasive surfaces to prevent damage to the zinc coating.

Q8. What should I do if I notice rust on my galvanized flanges?

If you observe rust on your galvanized flanges, it may indicate that the zinc coating is compromised. It’s essential to inspect and, if necessary, re-galvanize or replace the flanges to restore their corrosion resistance.

Conclusion

In conclusion, galvanized steel flanges are versatile and indispensable components used in a wide array of applications across various industries, with their exceptional corrosion resistance, durability, and strength. They are relatively inexpensive and easy to install. With proper maintenance, galvanized steel flanges can last for many years.

For all your flange steel requirements, consult with reputable manufacturers and suppliers like Texas Flange, who can provide the right flange solutions tailored to your application’s demands.
